Compact SD-WAN application with Intel® Denverton C3436L(4C) / C3338R(2C) Processor
ANS-9142S series builds on Intel® Denverton C3436L / C3338R processor with up to four CPU cores. ANS Denverton Refresh series is a compact system with up to 2x combo ports, and 4x 1/2.5GbE ports with ETH bypass, it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.
| GENERAL | |
|---|---|
| Processor |
|
| BIOS | AMI UEFI BIOS |
| Memory | 2x DDR4 2400 MT/s ECC & non-ECC SO-DIMM up to 64GB |
| Storage | 1x SATA III port for SATADOM, M.2 Key-M storage |
| Expansion |
|
| Security | TPM 2.0 |

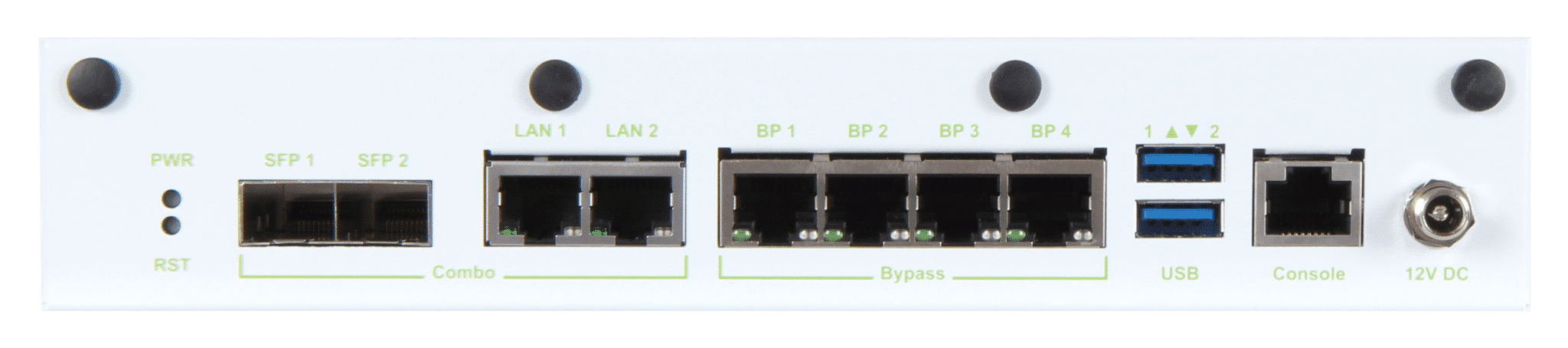

| EXTERNAL IO | |
|---|---|
| Console | 1x RJ45 |
| USB | 2x USB 3.0 |
| Ethernet |
|
| Other | 8x SMA Antenna holes for WiFi or LTE/5G module |
| POWER ADAPTER | |
|---|---|
| System | Dual 65W Power Adapter, 110-220V AC input, 12V DC output |
| MECHANICAL | |
|---|---|
| Dimension | 289 (W) x 183 (D) x 42 (H) mm |
| Mounting | Desk, Wall mount |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 70°C |
| Relative Humidity | 10% ~ 90% @40°C, non-condensing |
| Certification | CE, FCC, LVD |
| AS1-3388 | (R).ANS-9142S. C3436L 4-Core. 2x 2.5GbE bypass, 2x GbE bypass, 2x Combo Port. |
| AS1-3387 | (R).ANS-9141S. C3338R 2-Core. 2x 2.5GbE bypass, 2x GbE bypass, 2x Combo Port. |
