COM Express 系列

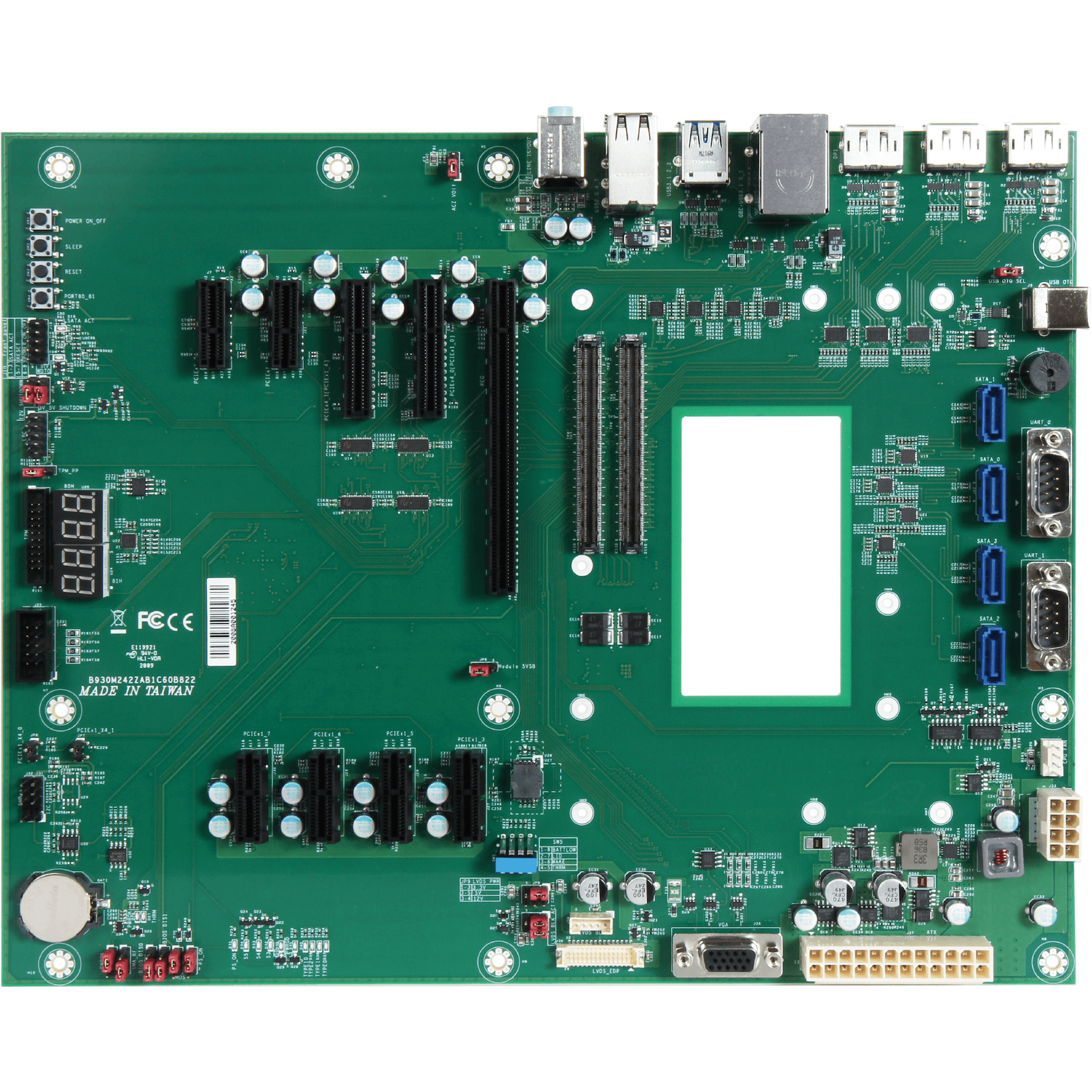

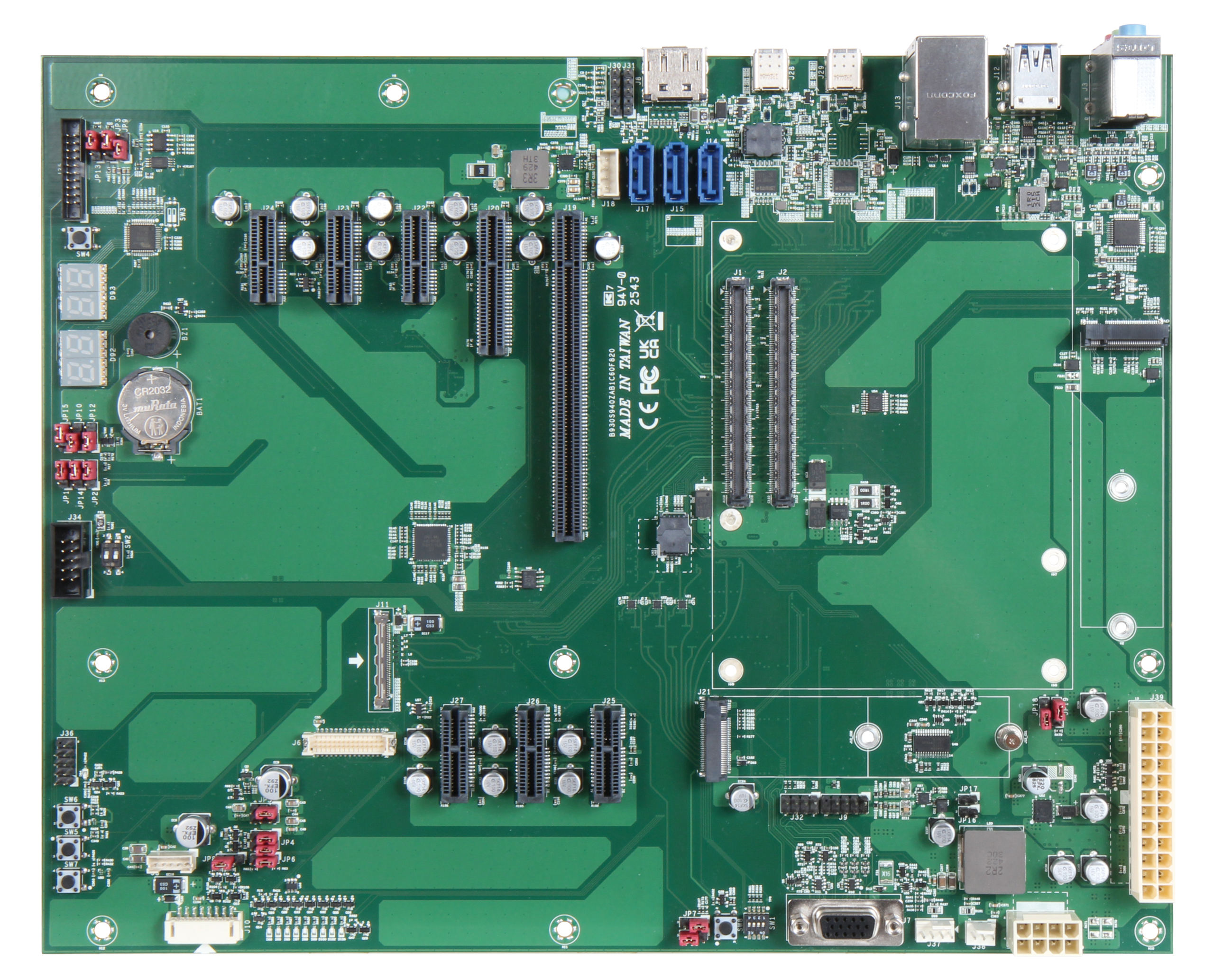

Portwell PCOM-C60F support the COM Express type6 module Basic and Compact Sizes with ATX size(305x244mm) form factor. This carrier board passed the most of Portwell evaluation testing. These functions include but are not limited to a rich complement of high speed interfaces such as PCIe, USB4, SATA. And also support several legacy I/O such as UART, GPIO, SMBUS, I2 C.

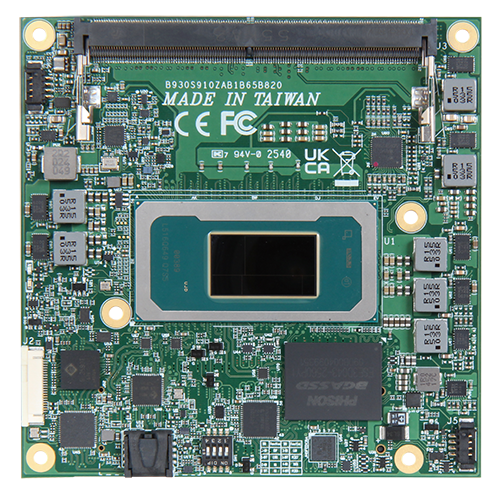

Intel^® PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

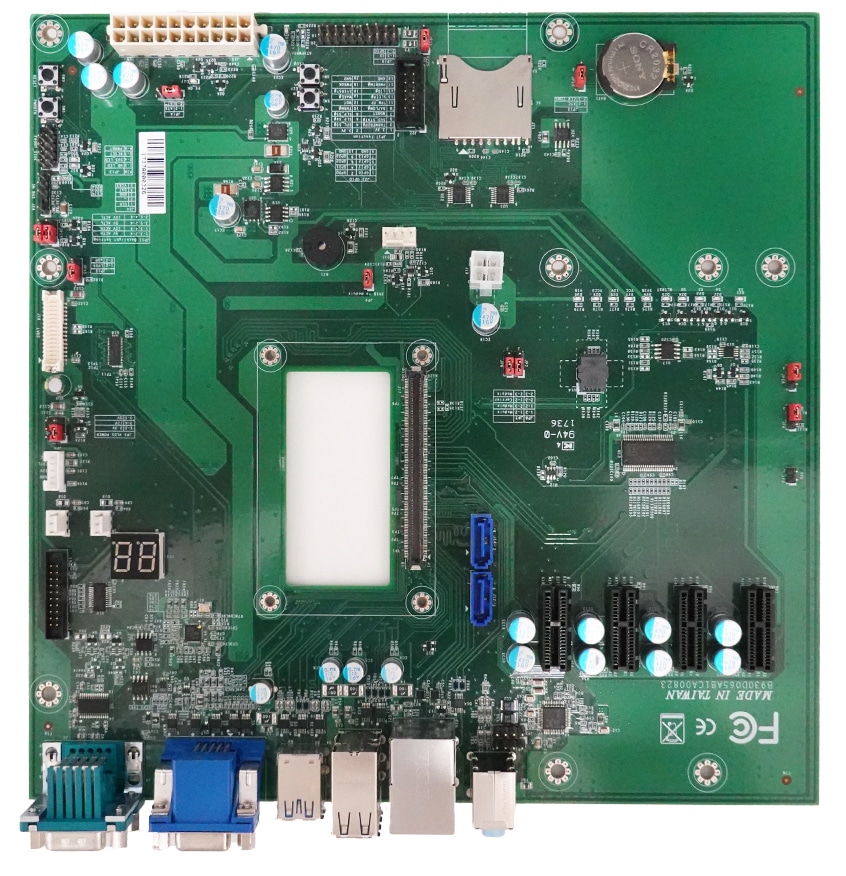

Micro-ATX Form Factor Evaluation Carrier Board For Type 10 COM Express@ Rev 3.0 Module

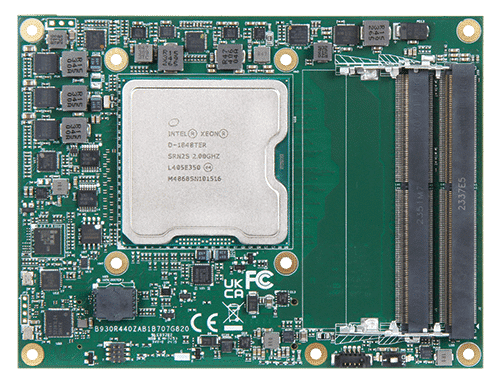

COM Express Type 7 Basic Module based on Intel^® Xeon^® D-1800 Processors with Two Channels and Two SO-DIMM slots.

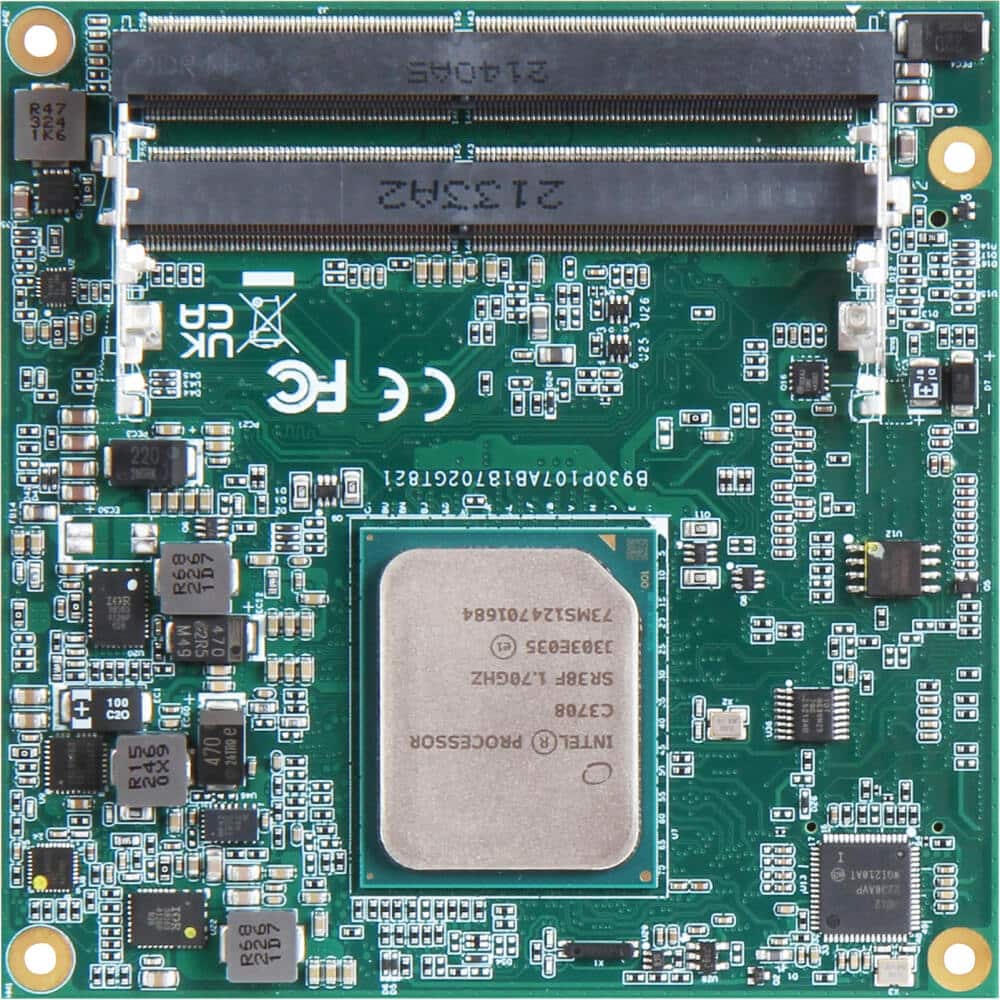

Intel^® Atom^® C3000/C3000-Refresh series SoC based on Type 7 Compact COM-Express^® module with up to Dual Channels and 2x DDR4 ECC SO-DIMM Socket

Intel^® Atom^® x7000 series SoC based on Type 10 mini COM-Express^® module with LPDDR5 SDRAM

COM Express Type 6 Basic size module with Intel New Gen Core Ultra 200 Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

COM Express^® Type6 Compact size module with Intel Atom^® x7000E/RE Series SoC DDR5 SO-DIMM, DDI, PCIe Gen 3, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

COM Express Type6 Compact size module with Intel^® 13^th Gen P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

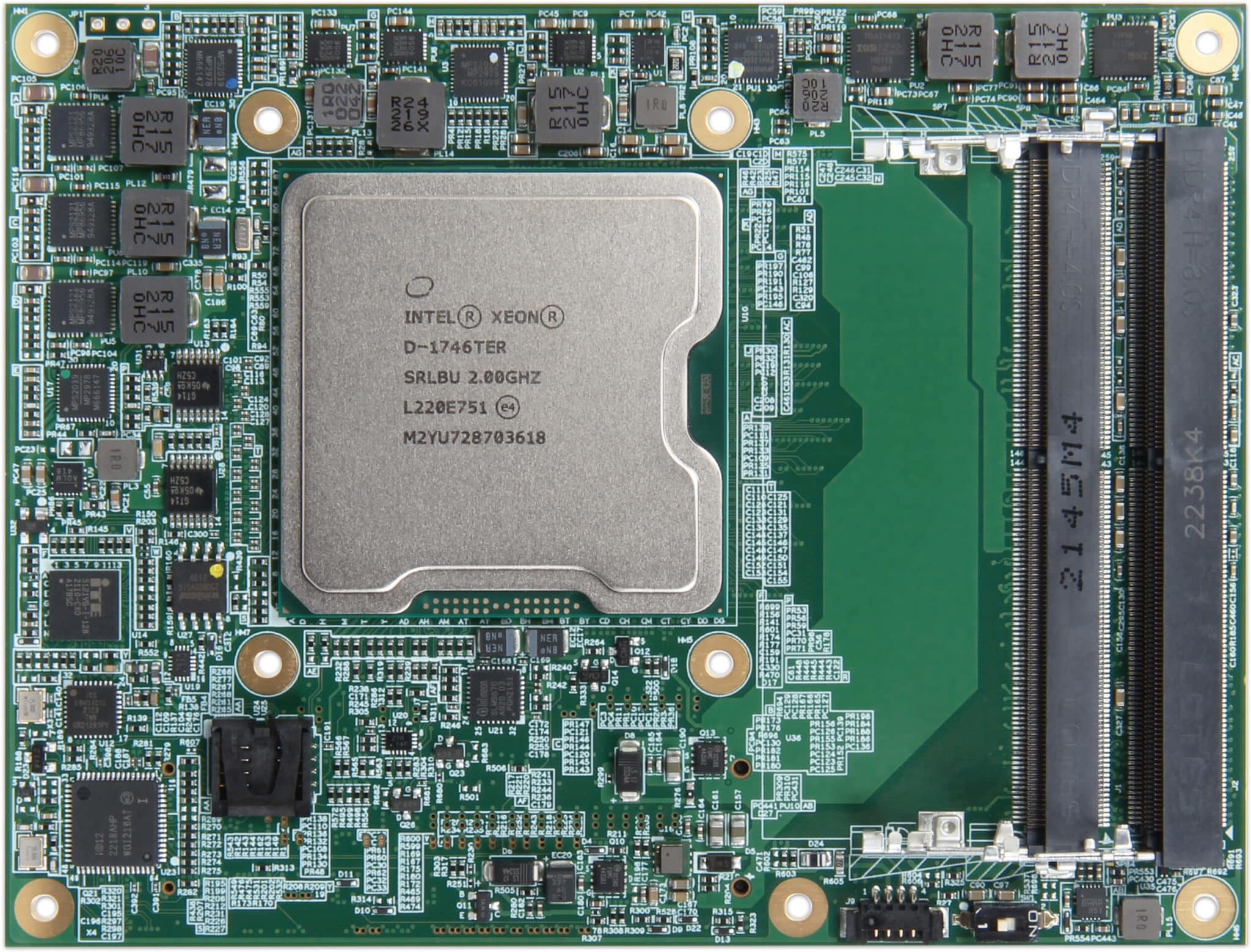

COM Express Type 7 Basic Module based on Intel^® Xeon^® D-1700 Processors with Three Channels and Four SO-DIMM slots

COM-Express^® Type 7 Basic module with AMD^® Embedded RyzenTM V3000 CPU Family equipped on-module NVME SSD

COM Express Type6 Basic size module with Intel^® 13^th Gen H Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

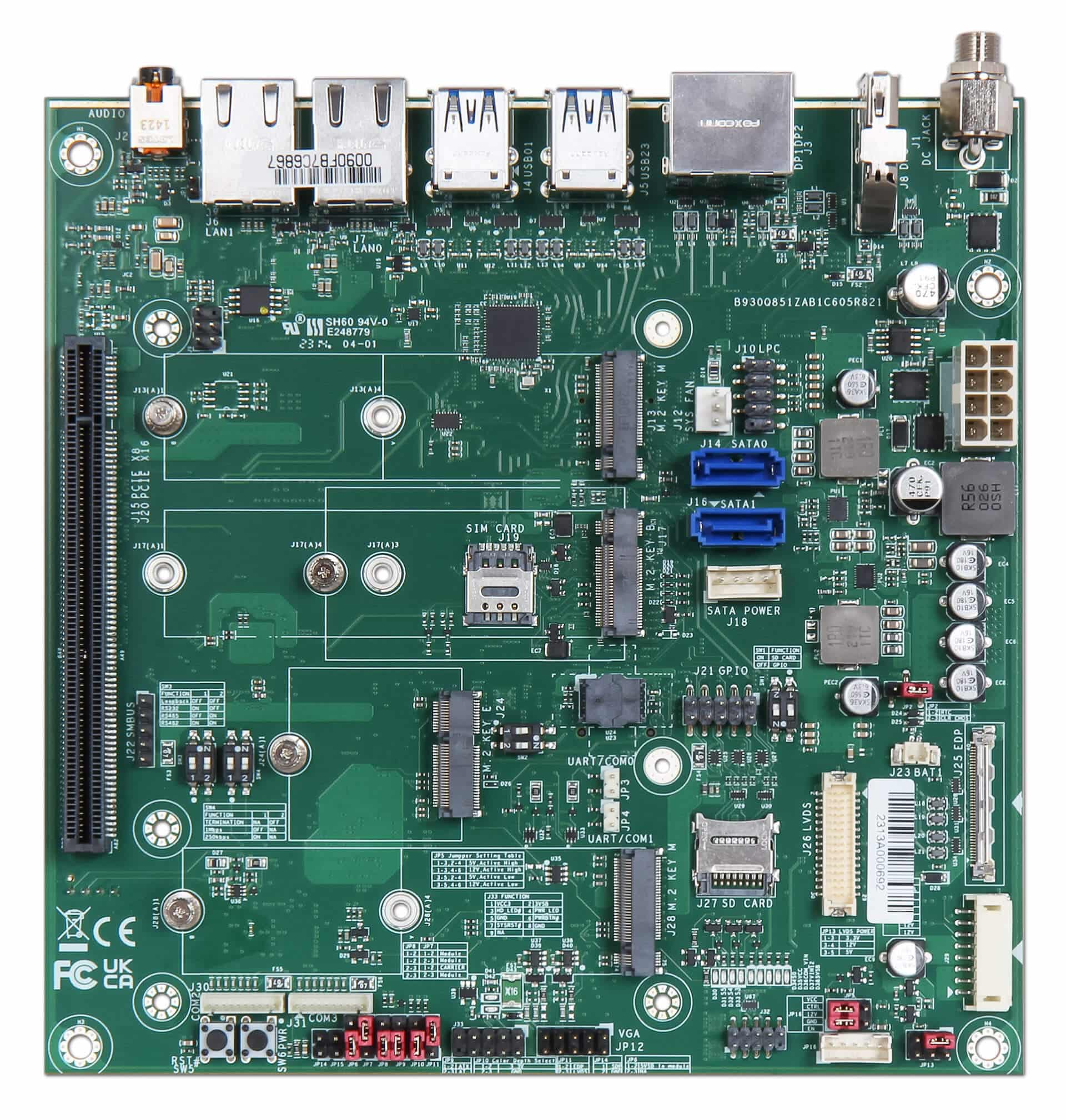

Mini-ITX size carrier board for COM Express Type6 module

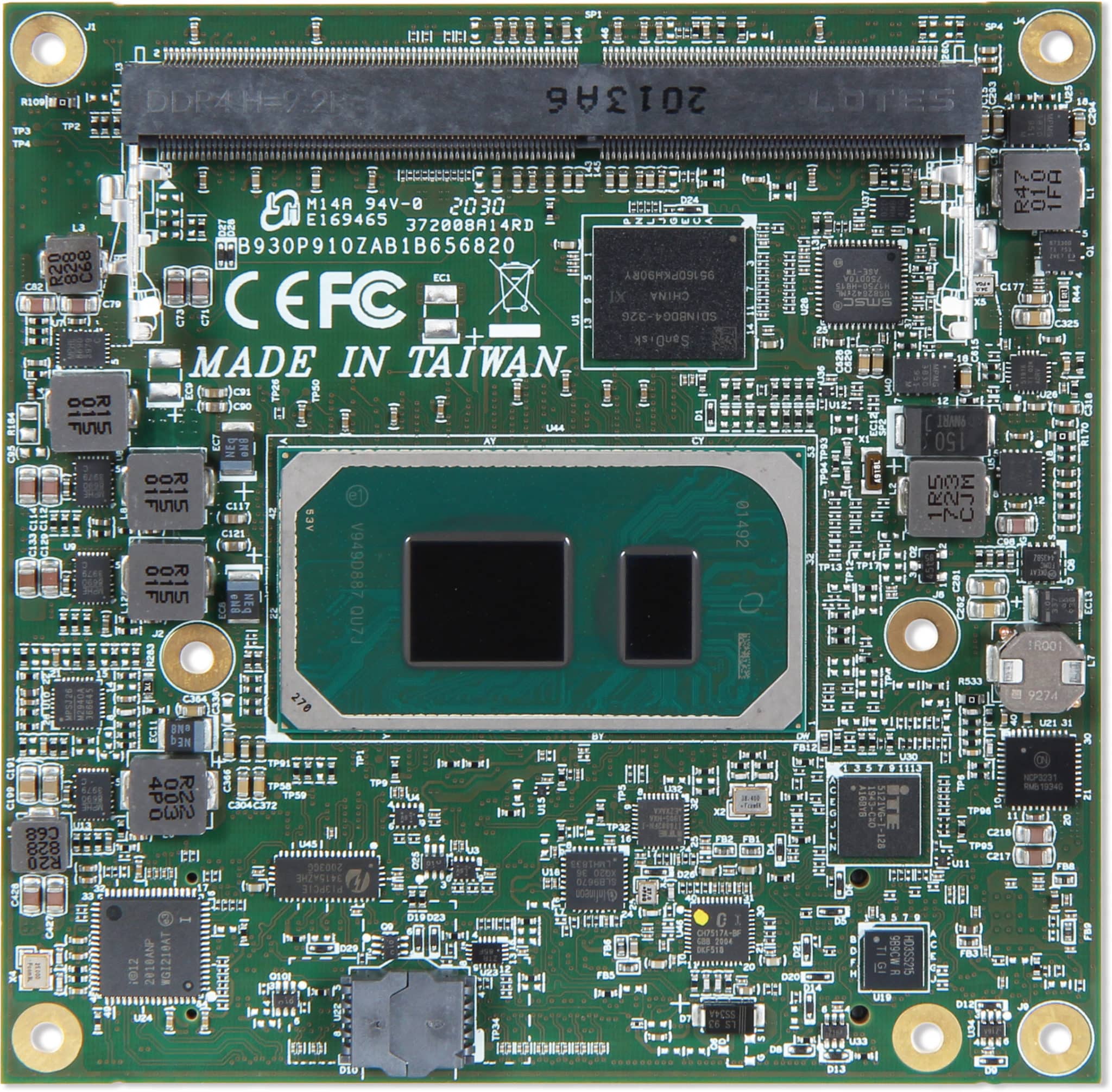

Intel^® Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2

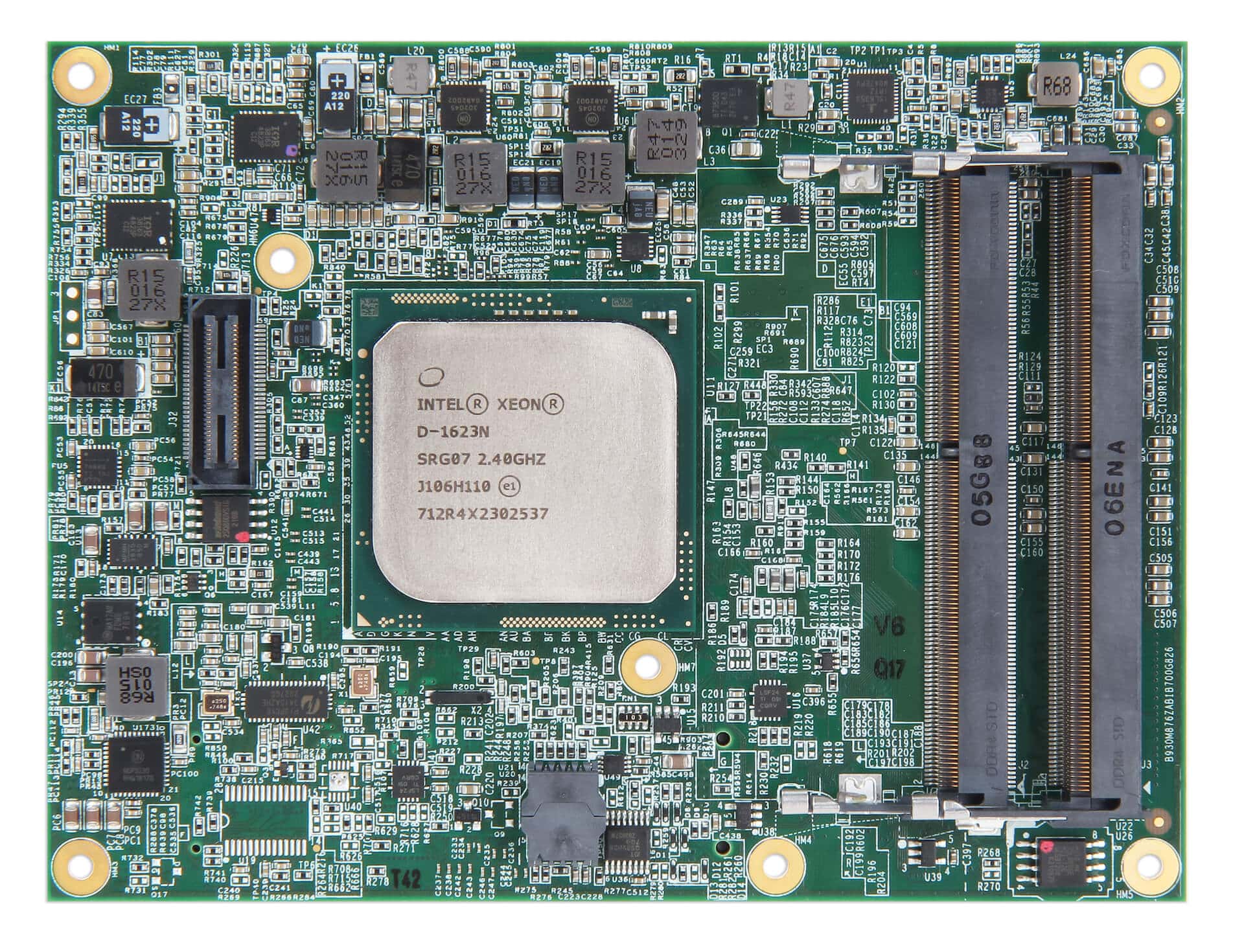

Intel^® Xeon^® D-1600 series SoC based on Type 7 Basic COM-Express^® module

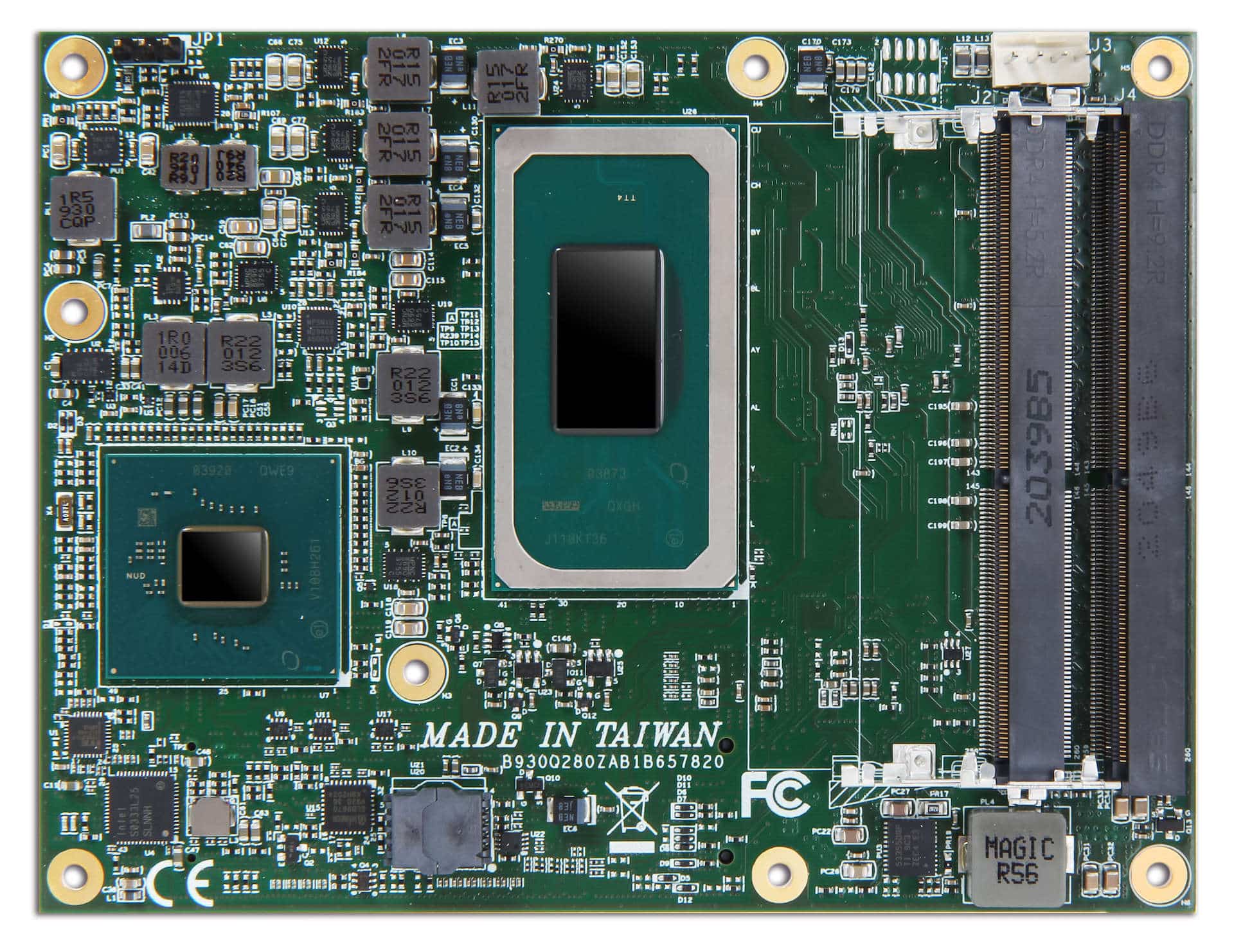

COM Express Type-VI Basic module with Intel^® 11^th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

Intel^® Atom^® x6000 series SoC based on Type 10 Mini COM-Express^® module with LPDDR4 SDRAM

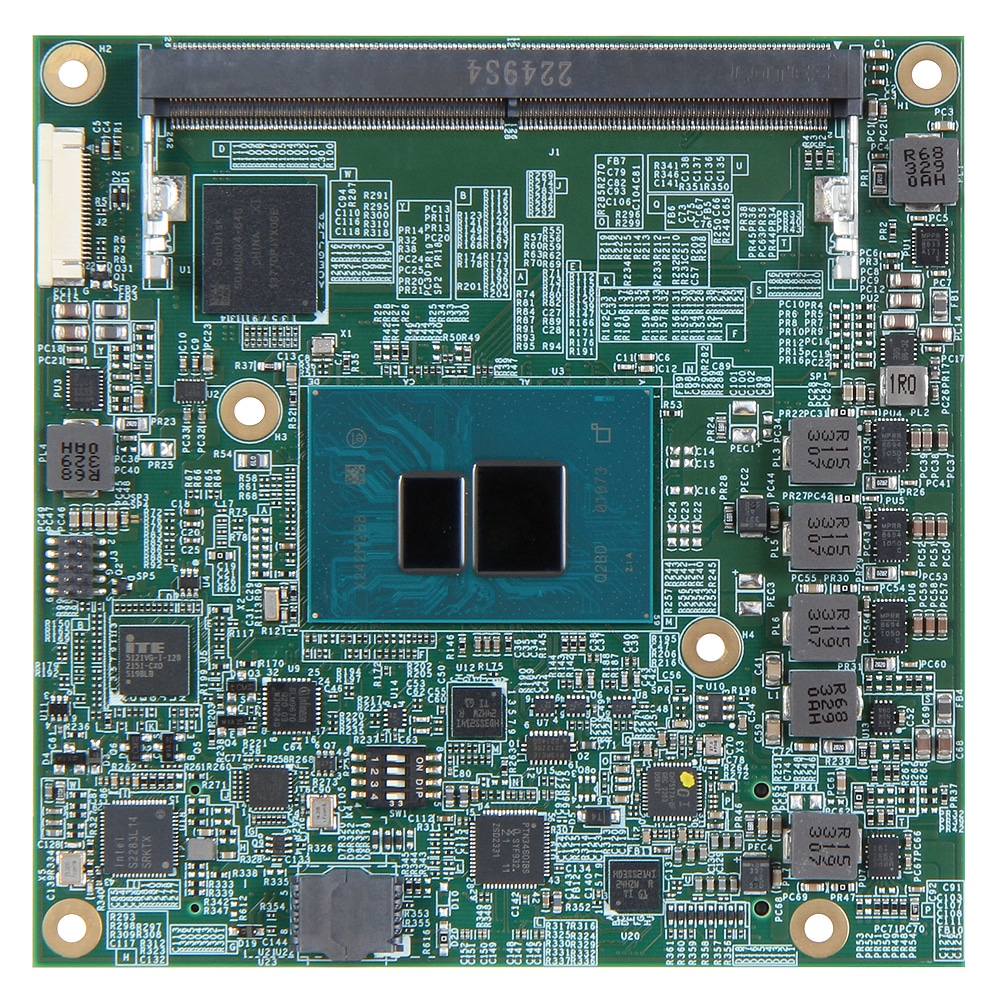

Intel^® Atom^® Elkhart Lake series SoC based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

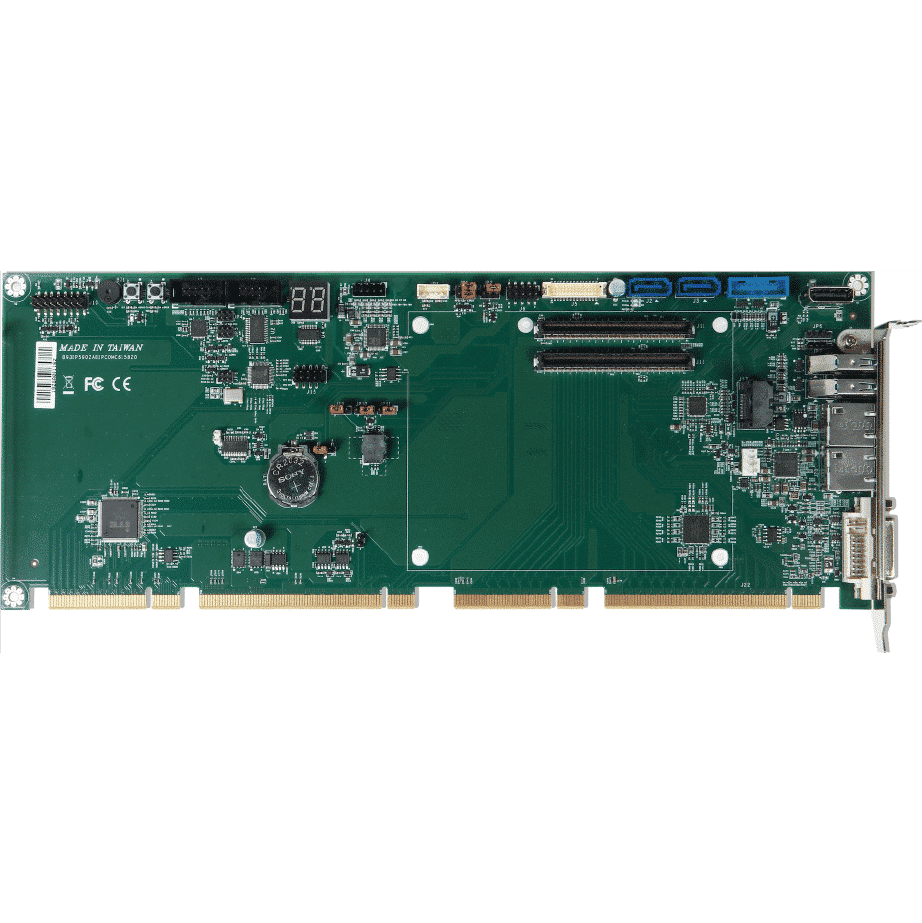

PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express^® Revision 2.0 Type VI Module. PCOM-C615 follows standard PICMG 1.3 golden finger pin definition and let customer save system total cost for easily upgrading modules

ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express^® Rev 3.0 Module

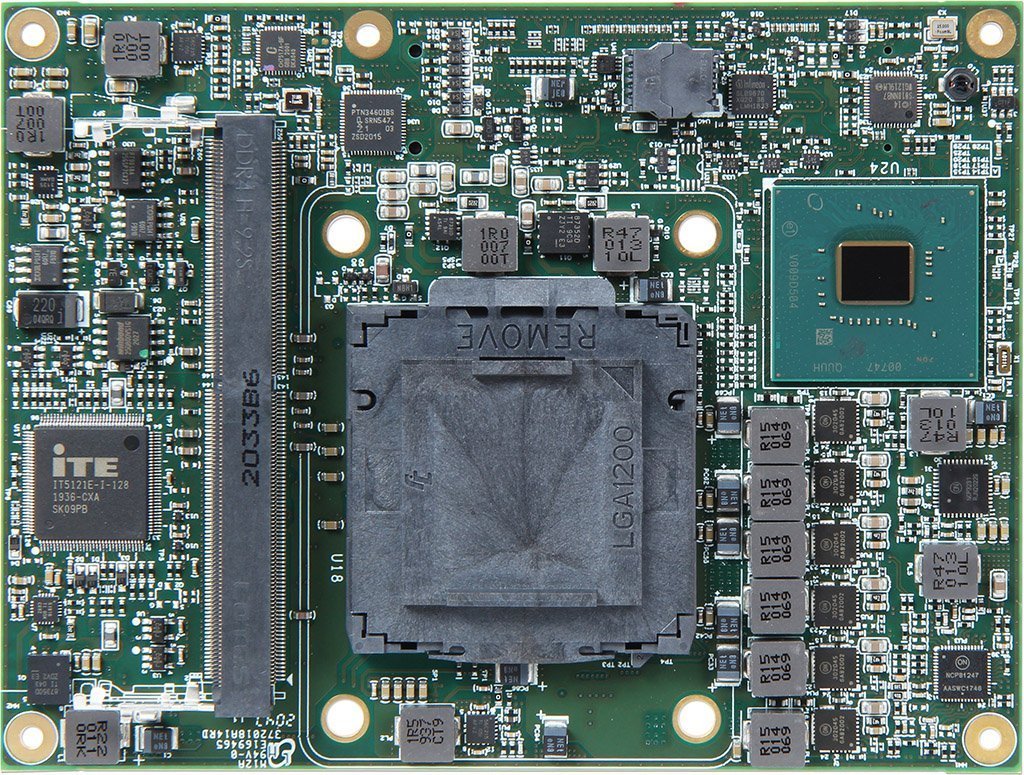

Intel^® Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

Intel^® Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

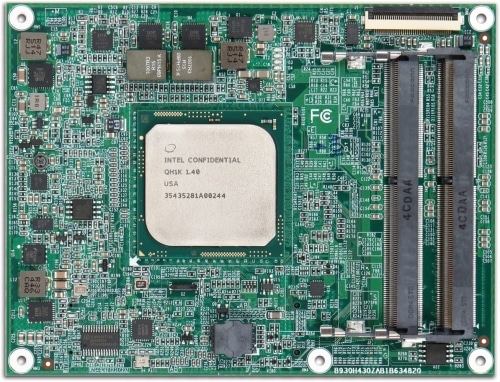

Intel^® Atom^® C3000/C3000-Refresh series SoC based on Type 7 Basic COM-Express^® module with 3x DDR4 ECC SO-DIMM Socket

Intel^® 7^th Generaon Core™ Kaby Lake-S processors based on Type VI Compact-COM Express 2.0 module with DDR4 SDRAM on Two SO-DIMM slots, VGA, eDP, DP, Gigabit Ethernet, PCIE, SATA and USB

Intel^® Core™ 7^th Generaon Processor based on Type VI COM Express module with DDR4 SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

Intel^® Kaby Lake‐U Core™ i7/i5/i3 processor based on Type VI Compact‐COM Express 2.0 module with DDR4 SDRAM on SO‐DIMM slots, VGA, LVDS, Display‐port, Gigabit Ethernet, PCIE, SATA, USB, and OTG

Intel^® Pentium^® / Xeon^® D-1500 series Processor based on Type 6 COM Express^® 2.0 module with DDR4 ECC/Non-ECC 3x SODIMM sockets, VGA, DDI, PCIex 16, USB 3.0, and SATA 6 Gb/s

Intel^® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

Intel^® Atom^® Apollo Lake series SoC based on Type 6 Compact COM-Express^® module with 2x DDR3L SD-DIMM Socket

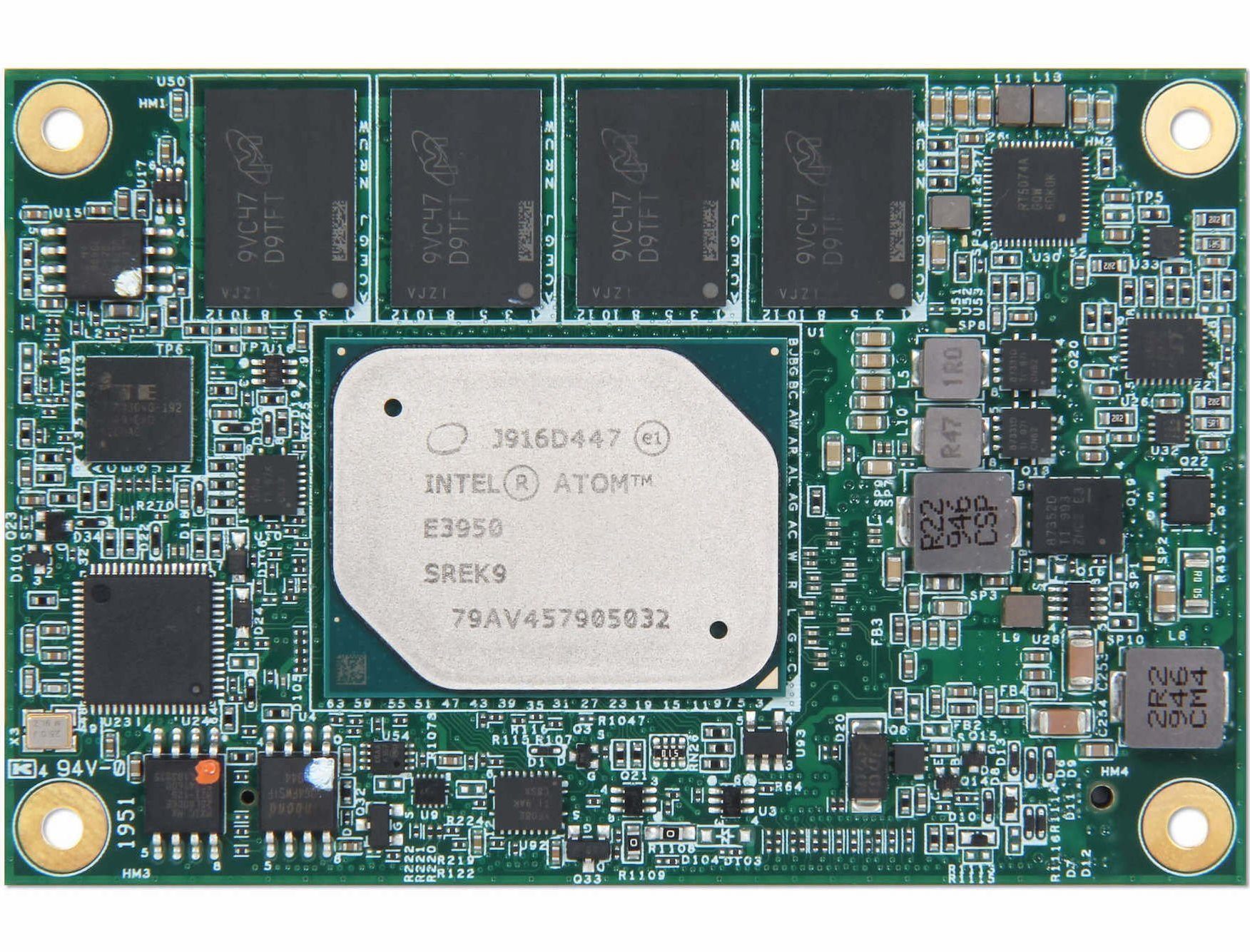

Intel^® Atom^® E3900 series SoC based on Type 10 Mini COM-Express^® module with LPDDR4 SDRAM, eMMC and USB 3.0

Intel^® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.Intel^® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.

Data protection is more and more important in real world since big data rising. Portwell adopt new Intel platform to provide highest secure logic. It help customer earn trust and business by securing important information anytime

Intel^® Atom^® Bay trail series SoC based on Type 6 COMExpress^® module with DDR3L 1x SD-DIMM Socket

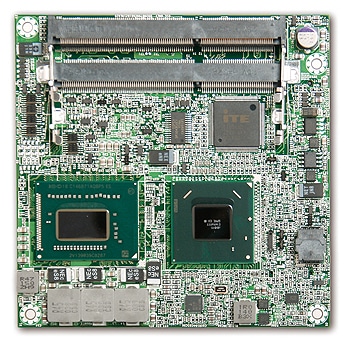

3rd Generation Intel^® Core™ processor family based Type VI Com Express with DDR3 SDRAM, VGA, LVDS, Gigabit Ethernet, 6Gbps SATA, and USB3.0

Intel^® Atom^® E3800 series SoC based on Type 10 Mini COM-Express^® module with DDR3L SDRAM, NANDrive and USB 3.0

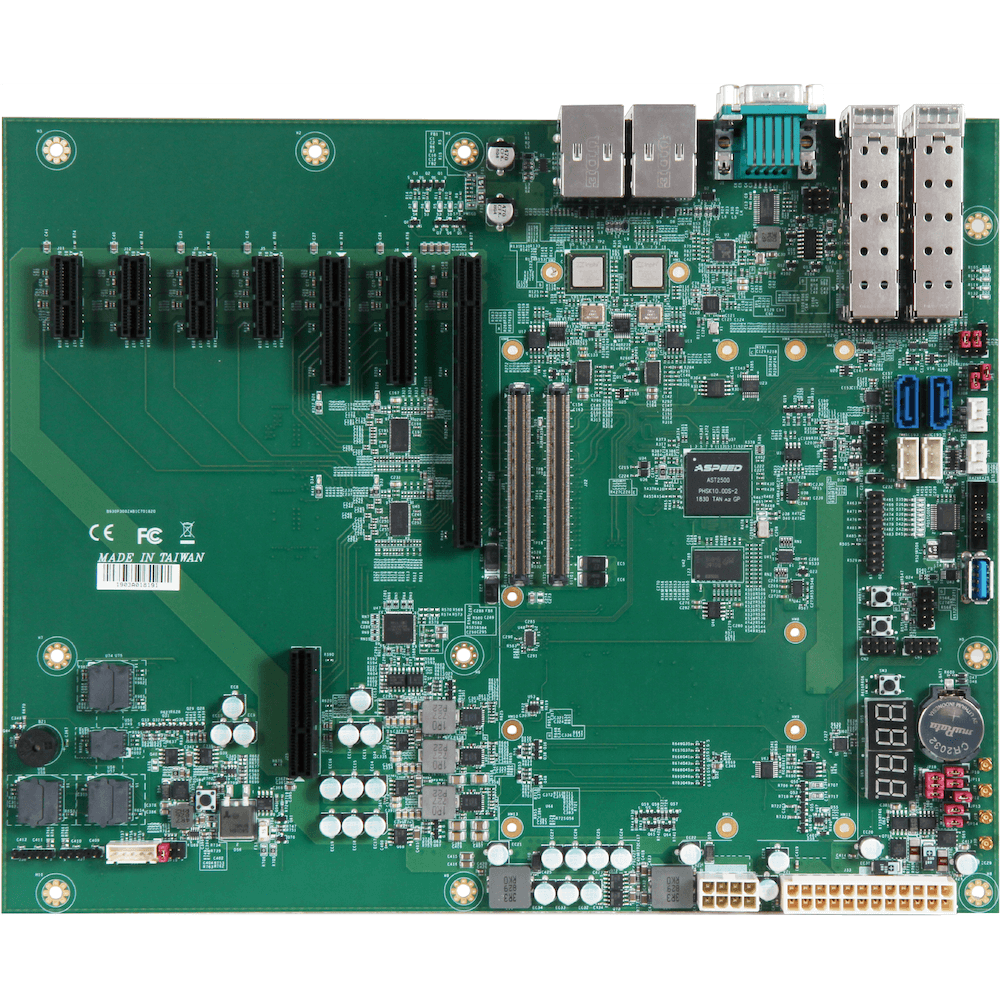

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module with 4x 10GbE Support with Inphi CS4227 PHY

Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express^® Rev 2.1 Module

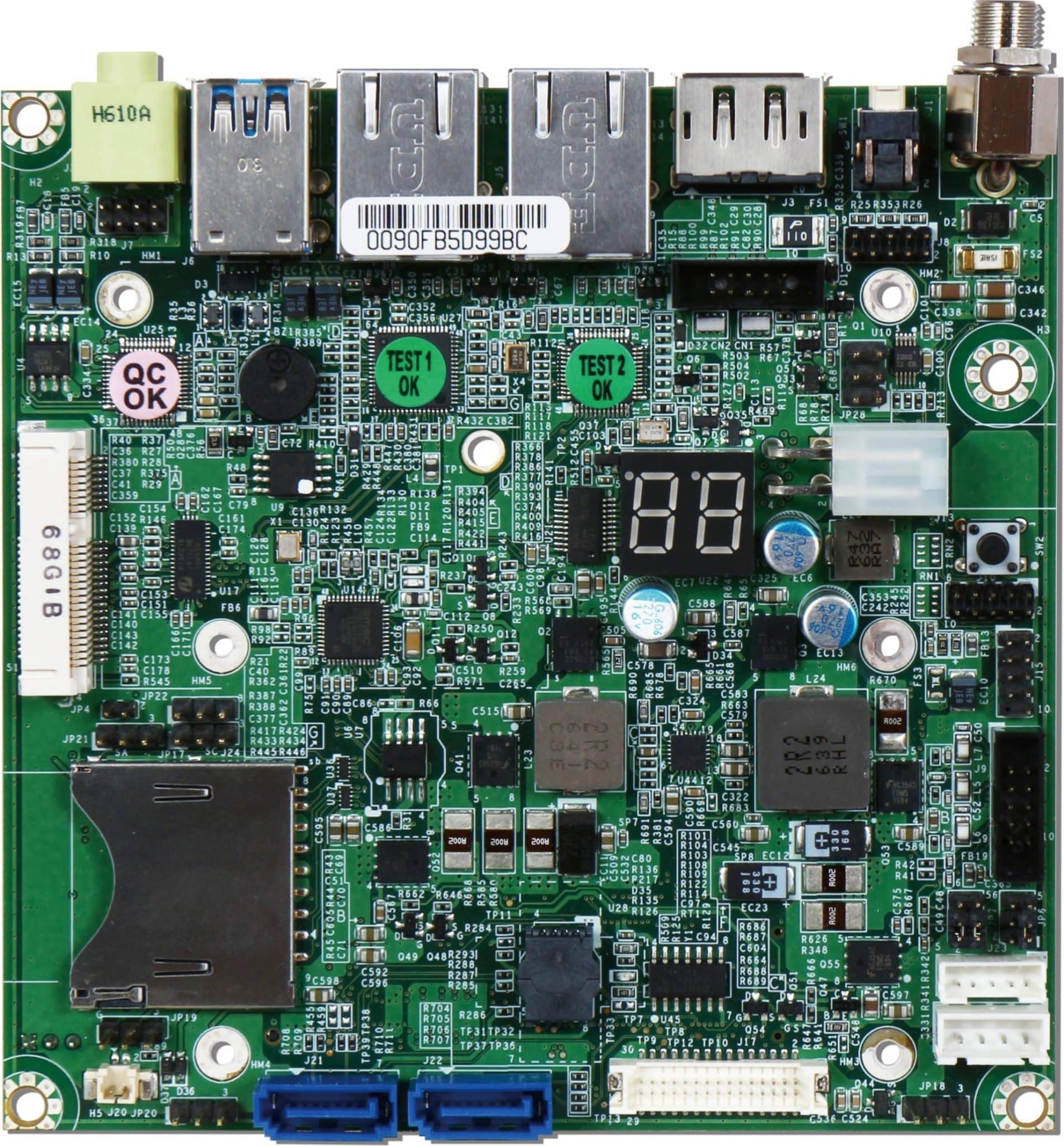

PCOM-C640 is NANO-ITX carrier board with triple display, Gigabit Ethernet, Audio, USB 3.0, SATA. It’s a powerful carrier which is suitable for system.

Intel^® Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket
