PCOM-C60F

Portwell PCOM-C60F support the COM Express type6 module Basic and Compact Sizes with ATX size(305x244mm) form factor. This carrier board passed the most of Portwell evaluation testing. These functions include but are not limited to a rich complement of high speed interfaces such as PCIe, USB4, SATA. And also support several legacy I/O such as UART, GPIO, SMBUS, I2 C.
PCOM-C60F

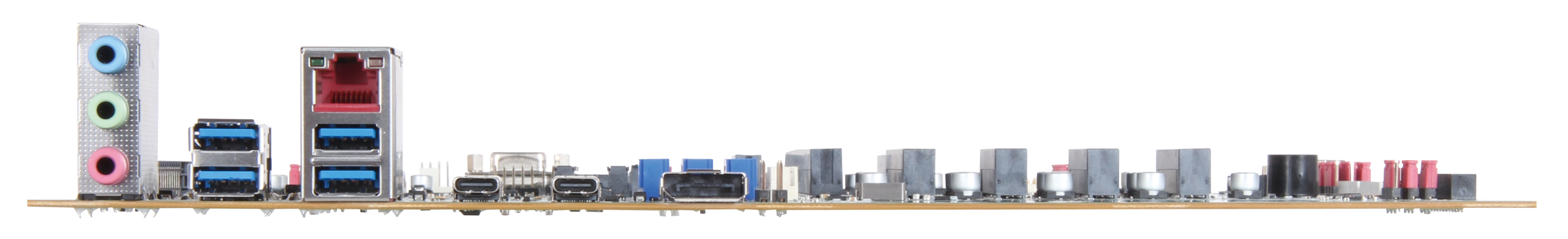

PCOM-C60F：圖片 2

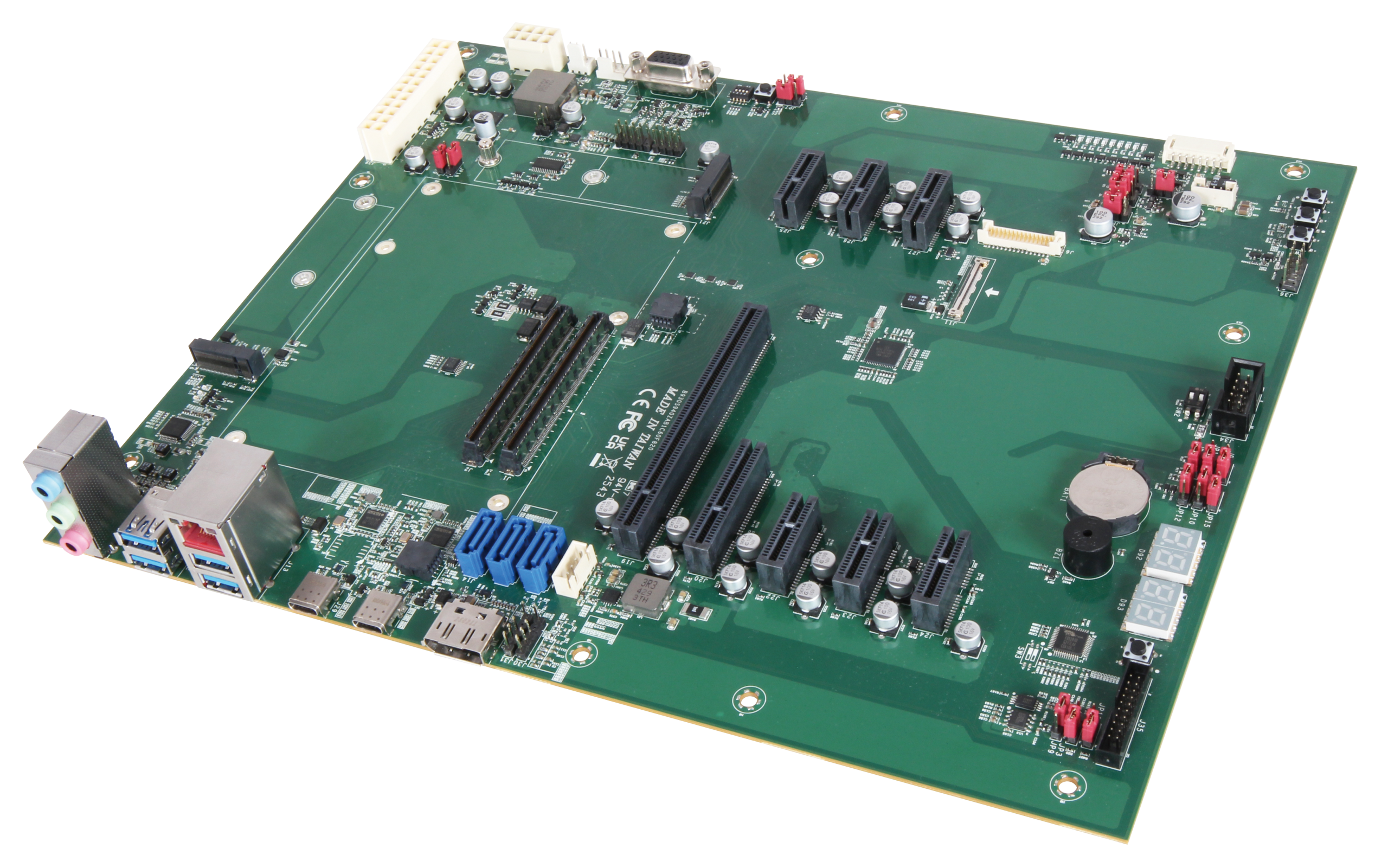

PCOM-C60F：圖片 3

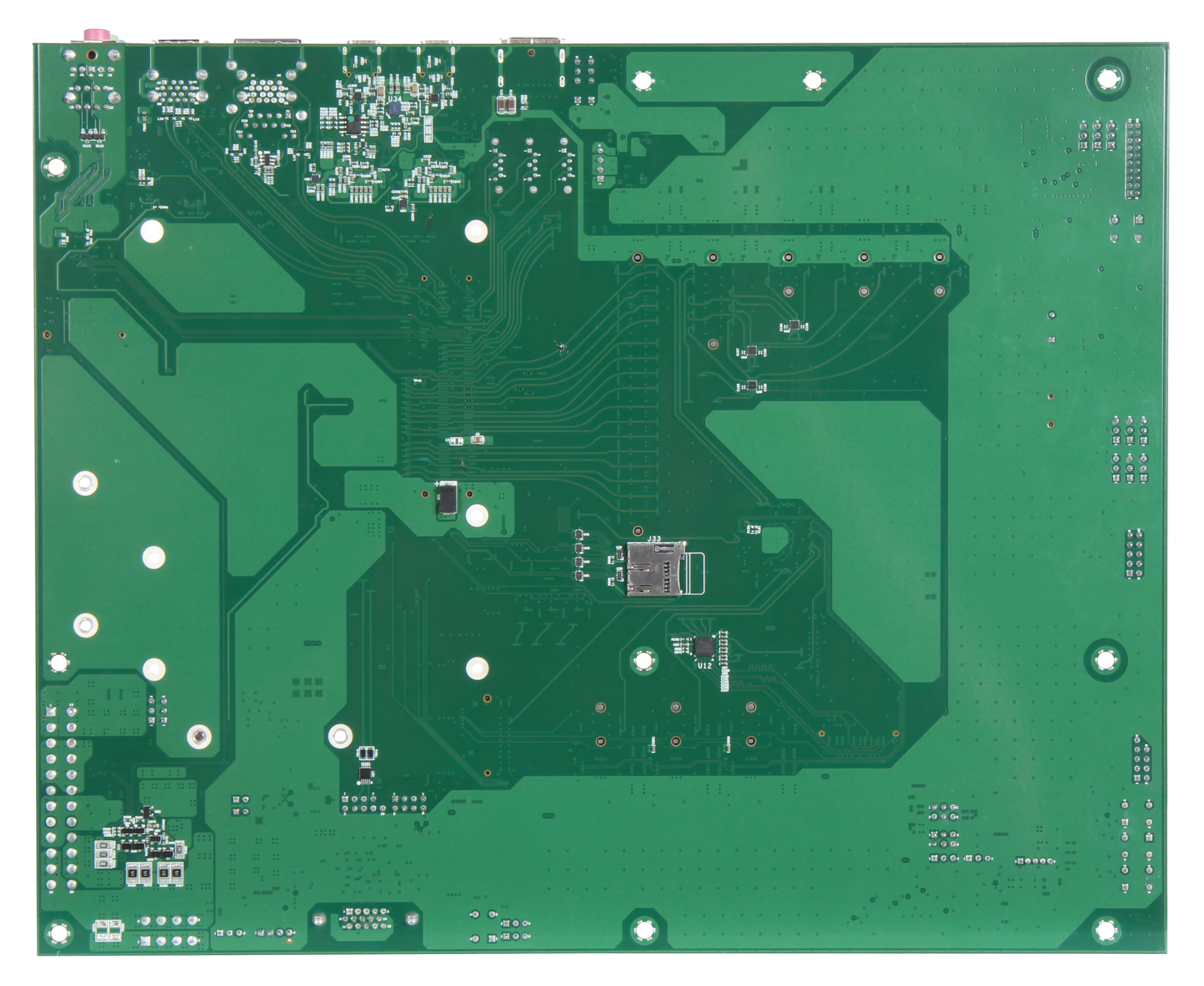

PCOM-C60F：圖片 4

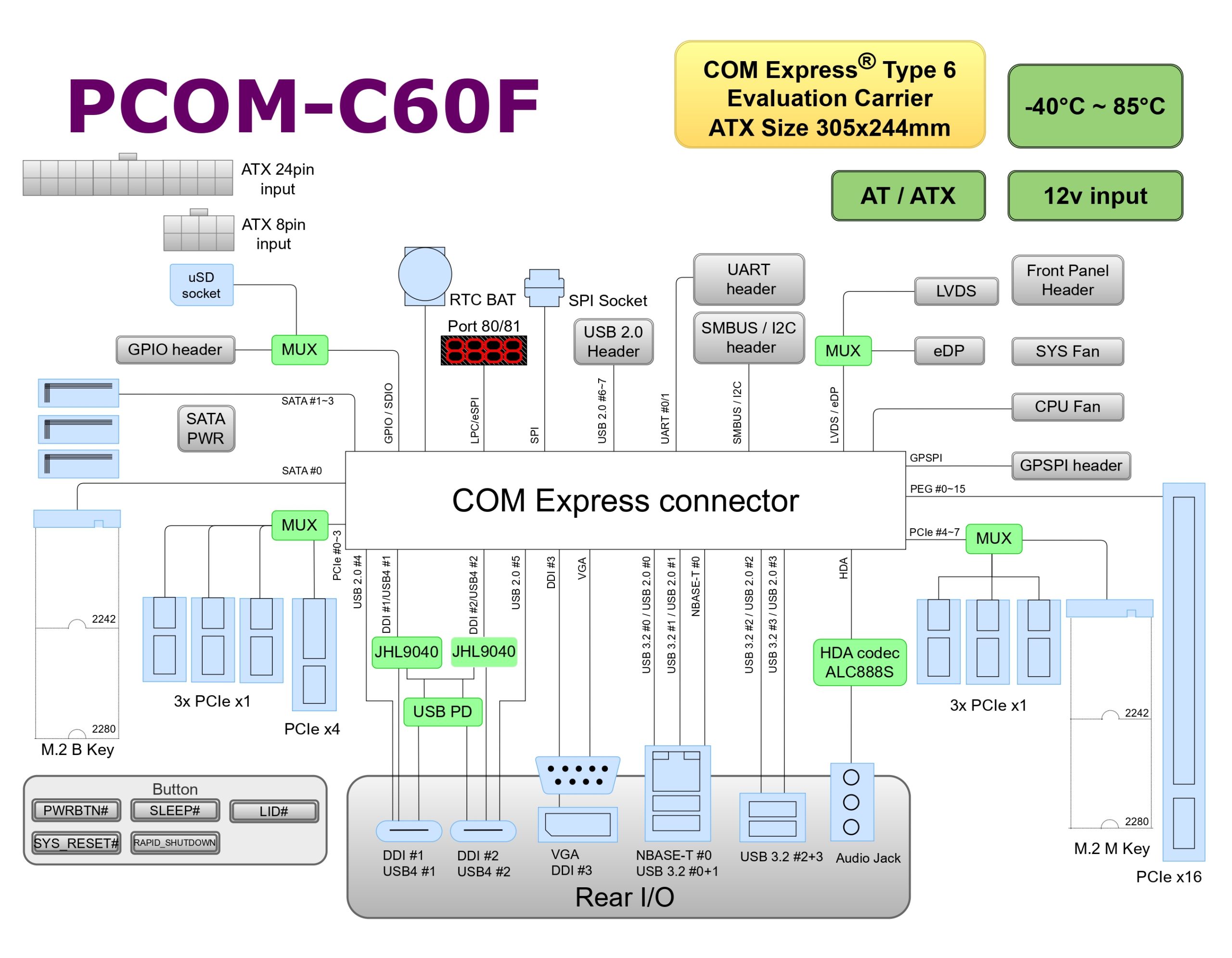

功能特色

  • COM Express Type6 carrier board support Basic/Compact size modules
  • ATX size form factor provides extra expansions slot, and follows the standard space mounting
  • Supports 2x USB Type-C port(USB4 & DDI) , 4x USB 3.2(Type-A), 3x SATA, PCIe Gen4, M.2 B Key, PEG x16, PCIe x4, M.2 M-Key, 2.5G RJ45
  • Support wide temperature -40°C to 85°C
產品型錄
文件與下載
General
Product PCOM-C60F
Form Factor ATX size(305x244mm)
Supported Module COM Express Type6 , Basic/Compact size
General Function
  • RTC battery
  • BIOS SPI Socket
  • Power BTN / Reset BTN/Rapid shutdown BTN/Sleep BTN/LID BTN
  • One VGA port
  • Audio Jack
I/O Interface
SATA 3 x SATAIII
USB
  • 2x USB Type C port
  • 4x USB Type A port
Ethernet 1x 2.5Gb RJ45
Serial I/O GPIO
I²C
SMBus
UART
PCI Express
  • 1x PCIe 4.0 x16 connector
  • 1x PCIe 4.0 x4 connector
  • 6x PCIe 4.0 x1 connector
  • 1x M.2 M Key
Others
  • System Fan connector x1, 4 PIN PWM Smart FAN Type
  • (Temperature and voltages monitoring)
MECHANICAL & ENVIRONMENT
Dimension 305mm x 244mm
Storage Temperature -40℃ to 85℃
Operating Temperature -40℃ to 85℃
Storage Humidity 0% to 95%
Operation Humidity 0% to 95%
Ordering Guide
Product Ordering P/N Status
PCOM-C60F AB1-3U26Z In Development
