PCOM-B65F

Intel^® New Gen Core™ ultra; 2x DDR5 SO-DIMM to 128GB IBECC; 20 PCIe Gen4 lanes; 4x USB 3.2 Gen2; 3x DDI, eDP/LVDS

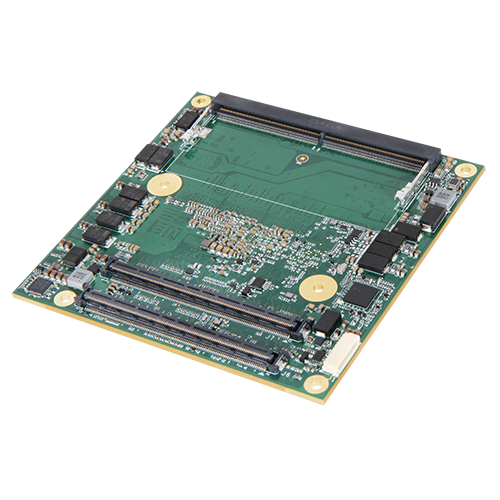

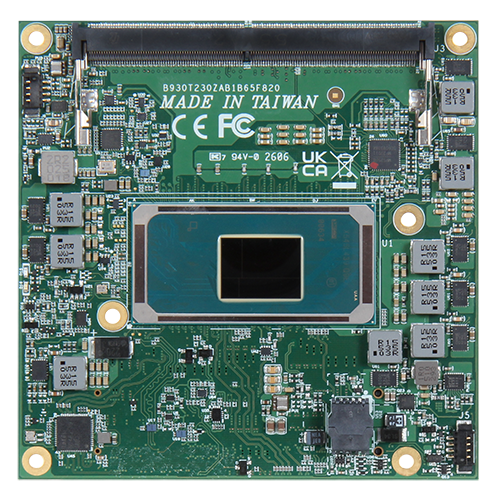

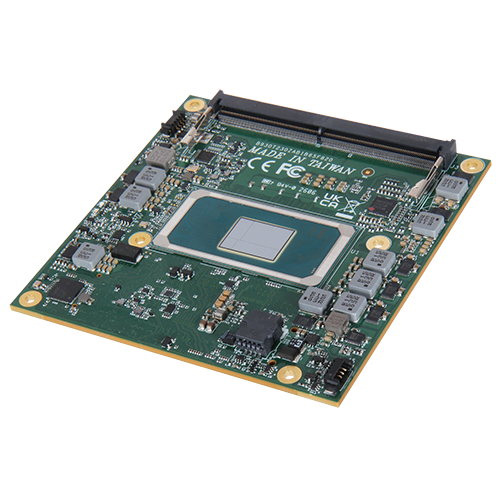

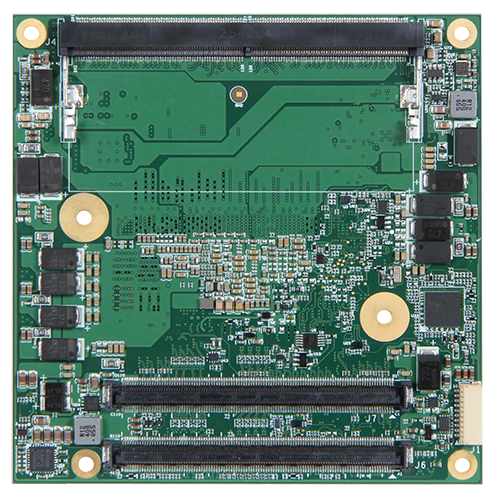

PCOM-B65F

PCOM-B65F：圖片 2

PCOM-B65F：圖片 3

PCOM-B65F：圖片 4

PCOM-B65F：圖片 5

功能特色

Intel^® New Gen Core ultra processor ( Panther Lake-H ) 15W~65W
Up to 4 P-cores + 8 E-cores + 4 LPE cores Support up to 4Xe GPU (40Tops) and NPU 5 (50 Tops)
2x DDR5 SO-DIMM support IBECC, up to 128GB/7200 MT/s
Support up to 20 PCIe Gen4 Lane
4x USB3.2 Gen2, 3x DDI, eDP/LVDS

Model	PCOM-B65F
Form Factor	COM Express Type 6 Compact Size (95 mm x 95 mm)

General
CPU	Intel^® Core™ Ultra X9 386H	Intel^® Core™ Ultra X7 366H	Intel^® Core™ Ultra X7 356H	Intel^® Core™ Ultra 5 336H
Core/Thread	16	16	16	12
Based Frequency	2.1 GHz	2.0 GHz	1.9 GHz	1.9 GHz
Turbo Frequency	4.9 GHz	4.8 GHz	4.7 GHz	4.5 GHz
Cache	18 MB	18 MB	18 MB	18 MB
TDP	25 W	25 W	25 W	25 W
Graphics EU	4Xe	4Xe	4Xe	4Xe
Graphics Max Freq.	2.5GHz	2.5GHz	2.45GHz	2.3GHz
Memory Type/Speed	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s
ECC Memory Support	IBECC	IBECC	IBECC	IBECC
Temperature Range	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)
BIOS	AMI uEFI BIOS
ECC	board
Memory	2 x SO-DIMM DDR5 up to 128GB 7200 MT/s

I/O Interface
USB	4 x USB 3.2 Gen2
USB	8 x USB 2.0
Ethernet	1 x 2.5 Gbe LAN (Share w/ PCIe)
PCIe	1 x PCIe Gen5 x8
	1 x PCIe Gen5 x4
	7 x PCIe Gen4 x1
	1 x PCIe Gen4 x1
Legacy I/O	8 x GPIO
Legacy I/O	2 x UART
Security	TPM 2.0
Display	eDP / LVDS eDP up to HBR3 3840 x 2160@120Hz
	eDP / LVDS LVDS (24bit, dual channel) 1920 x 1200@60Hz
	DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz
	DDI 1/2/3 HDMI^® 2.1
	DDI 1/2/3 USB4 40Gb

ME/Environment
Dimension	95 mm x 95 mm (3.74” x 3.74”)
Operating Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
OS	Linux, Windows 11
Portwell Special Feature	PET

Ordering Guide

Category	Product	P/N	Description
COM Express	PCOM-B65F-386H	TBD
COM Express	PCOM-B65F-366H	TBD
COM Express	PCOM-B65F-356H	TBD
COM Express	PCOM-B65F-336H	TBD
Accessory	Cooler	TBD
