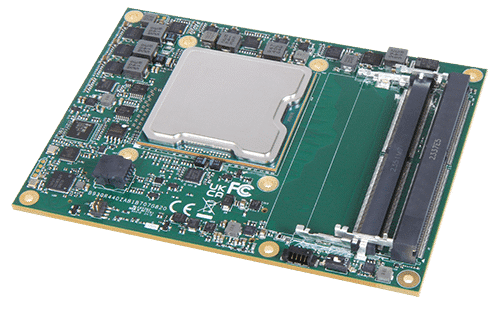

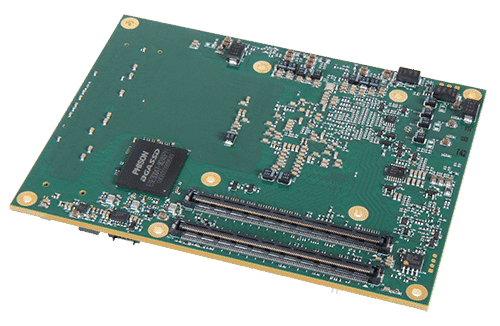

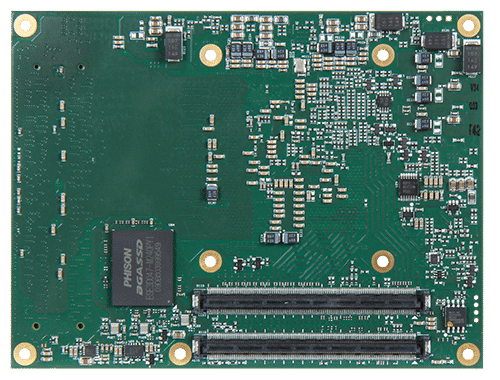

PCOM-B707GT, a COM Express® Type 7, basic size module based on Intel® Xeon® D-1800 family. It is high-performance SoC with integrated ethernet and high-capacity I/Os for IoT to deliver server-class computing. PCOM-B707GT provide server-grade performance in small form factor with option from 4 cores up to 10 cores, two channels DDR4, and full COMe Type 7 I/O support. PCOM-B707GT is the best platform for edge AI computing and software defined networking (SDN) applications.
| General | ||||||
|---|---|---|---|---|---|---|
| Product | PCOM-B707GT | |||||
| Form Factor | Type 7, Basic Form Factor COM-Express® ( 125 x 95 mm) | |||||
| Processor | Network and Enterprise ( 0°C to 60°C) | Extended Temperature (-40°C to 80°C) | ||||
| D-1844NT | D-1823NT | D-1813NT | D-1735TR | D-1848TER | D-1715TER | |
| Core | 10 | 6 | 4 | 8 | 10 | 4 |
| Freq. | 2.0 GHz | 2.8 GHz | 2.2 GHz | 2.4 GHz | 2.0 GHz | 2.4 GHz |
| Turbo | 3.1 GHz | 3.5 GHz | 2.4 GHz | 3.5 GHz | 3.1 GHz | 3.5 GHz |
| Cache | 15 MB | 10 MB | 10 MB | 15 MB | 15 MB | 10 MB |
| Processor TDP | 55W | 55W | 42W | 59W | 57W | 50W |
| Intel® QuickAssist Technology (Intel® QAT) |
Yes | Yes | Yes | No | No | No |
| Intel® Time Coordinated Computing (Intel® TCC) |
No | No | No | Yes | Yes | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes | Yes | Yes | Yes | Yes | Yes |
| Ethernet 10G KR | 4 | 4 | 4 | 4 | 4 | 4 |
| BIOS | AMI BIOS | |||||
| ECC | Yes | |||||
| Storage | NVMe up to 1TB (optional) | |||||
| Memory | 2x SO-DIMM DDR4 up to 64GB 2933 MT/s | |||||
| Ordering Guide | ||
|---|---|---|
| Product | Ordering P/N | Status |
| PCOM-B707GT-D1848TER | AB1-3S77 | Available |
| PCOM-B707GT-D1844NT | AB1-3S76 | Available |
| PCOM-B707GT-D1823NT | AB1-3S75 | Available |
| PCOM-B707GT-D1813NT | AB1-3S74 | Available |
| PCOM-B707GT-D1735TR | AB1-3S73 | Available |
| PCOM-B707GT-D1715TER | AB1-3S72 | Available |
| Accessory | ||
|---|---|---|
| Accessory | Ordering P/N | Status |
| Cooler | B9972180 | Available |
| Heat Sink | B830C060 | Available |
| Heat Spreader | B830C070 | Available |
| PA-C3L-D17 | AB9-3439Z | Available |
| PCOM-C701-BMC (ATX Carrier board) |
AB1-3K14Z | Available |
