ANS-9A44S

Compact SD-WAN application with Intel® Denverton C3758R(8C) / C3558R(4C) Processor

OVERVIEW

ANS-9A44S series builds on Intel® Denverton C3758R / C3558R processor with up to eight CPU cores. ANS Denverton Refresh series is a compact system with up to 8x ETH ports and it is suitable for SDN (SD-WAN) application with 5G and WiFi deployment.

FEATURES

  • Intel Atom® C3758R(8C) / C3558R(4C) Processor (Denverton Refresh)
  • 4x SFP+, and 4x 2.5GbE RJ45 with ETH bypass
  • 1x RJ45 Console, 2x USB3.0
  • 2 x DDR4 2400 MT/s ECC and non-ECC SO-DIMM up to 64GB
  • 1x TPM2.0 (on-board)
  • 1x M.2 Key-E Slot (PCIe/ USB2.0) or M.2 Key-B Slot (PCIe/ USB3.0) choose one of the two
  • 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA), 1x SATA connector, and 1 x PCIe x 4
  • Design ready for 5G and WiFi
Datasheet
Service Request

SPECIFICATION

GENERAL
Processor
  • Intel® Denverton C3758R(8C) for ANS-9A44S
  • Intel® Denverton C3558R(4C) for ANS-9A42S
BIOS AMI UEFI BIOS
Memory 2x DDR4 2400 MT/s ECC & non-ECC SO-DIMM up to 64GB
Storage 1x SATA III port for SATADOM, M.2 Key-M storage
Expansion
  • 1x M.2 Key-E slot with PCIe and USB2.0 signals or 1x M.2 Key-B slot with PCIe and USB3.0 signals
  • 1x M.2 Key-B slot with PCIe and USB3.0 signals
  • 1x PCIe x4
  • 4x SIM slots
Security TPM 2.0

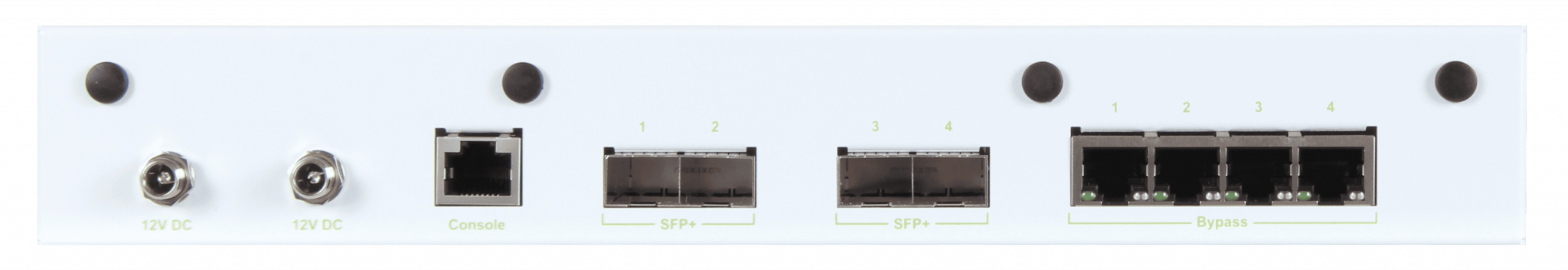

EXTERNAL IO
Console 1x RJ45
USB 2x USB 3.0
Ethernet
  • 4x 2.5GbE RJ45 with ETH bypass (Intel® I226)
  • 4x SFP+ (Intel Denverton Refresh)
Other 8x SMA Antenna holes for WiFi or LTE/5G module
POWER ADAPTER
System Dual 65W Power Adapter, 110-220V AC input, 12V DC output
MECHANICAL
Dimension 289 (W) x 183 (D) x 42 (H) mm
Mounting Desk, Wall mount
ENVIRONMENTAL
Operating Temperature 0°C ~ 50°C
Storage Temperature -10°C ~ 70°C
Relative Humidity 10% ~ 90% @40°C, non-condensing
Certification CE, FCC, LVD

ORDERING GUIDE

AS1-3385 (R). ANS-9A44S. C3758R 8-Core, 4x 2.5GbE Bypass, 4x SFP+
AS1-3386 (R). ANS-9A42S. C3558R 4-Core, 4x 2.5GbE Bypass, 2x SFP+
